Use Case – High crash count and high cpu usage on number of citrix servers in farm

Use Case – High Crash Count and High CPU Usage on Citrix Servers​

Discovered​

UXM triggered alerts indicating a high number of crashes occurring on endpoints, along with reports of elevated CPU usage across several Citrix servers.

Actions​

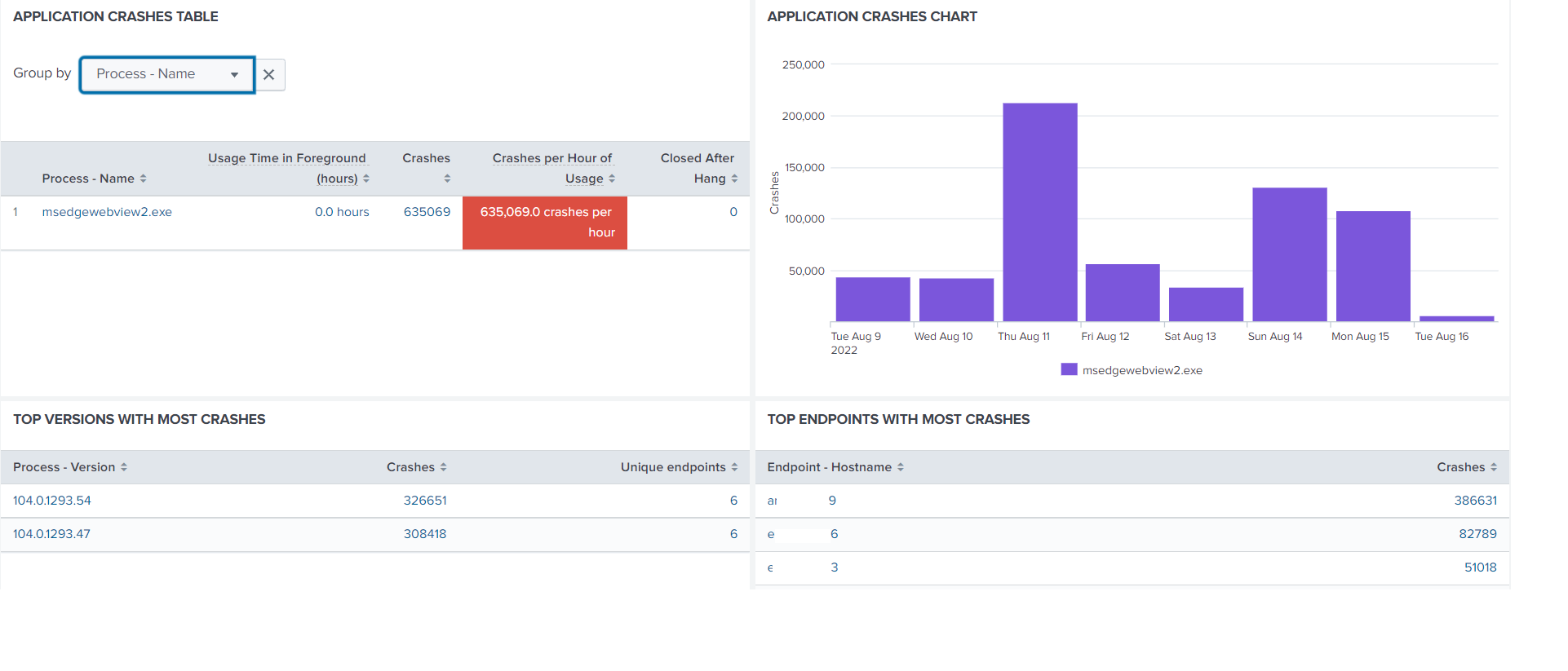

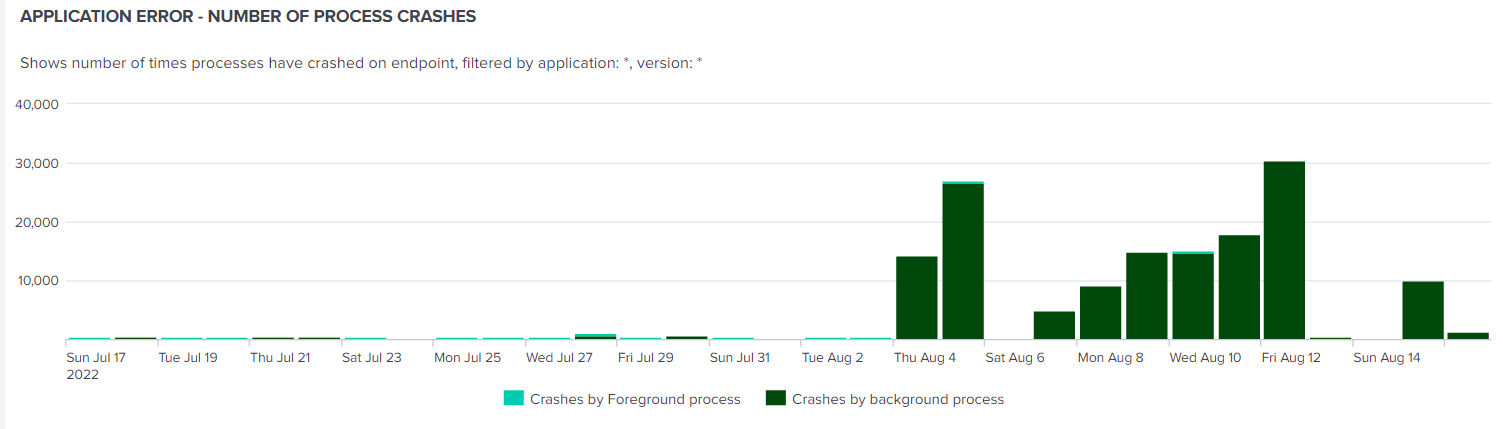

Technicians investigated which processes were crashing and discovered that the issue occurred only for msedgewebview2.exe on 6 out of 90 Citrix servers.

Reference Images:

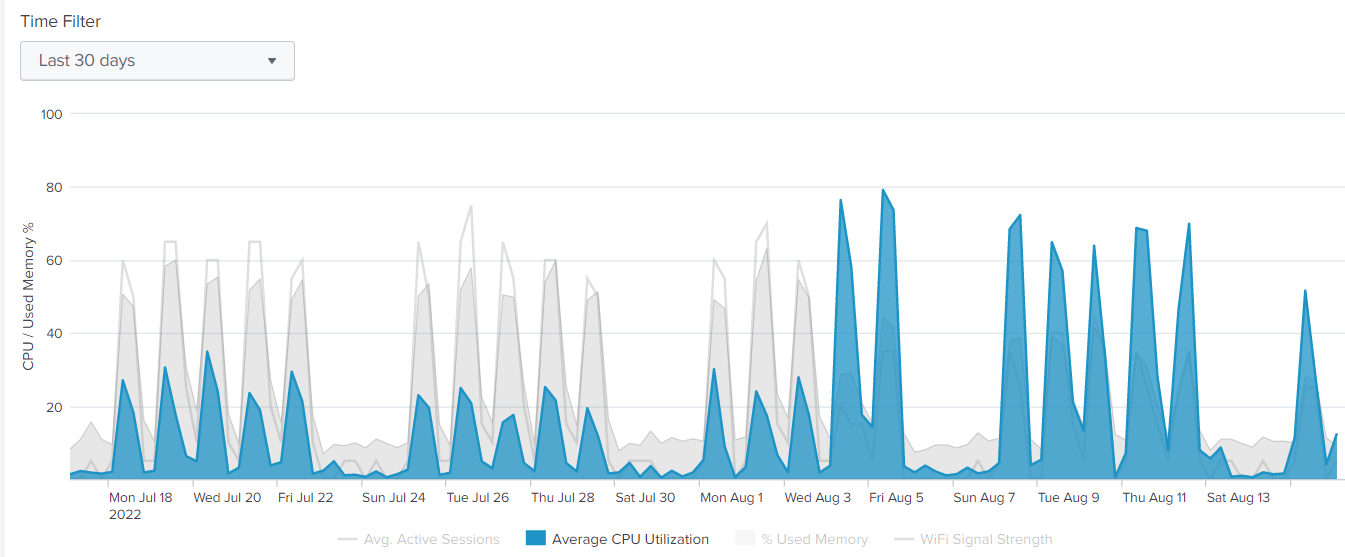

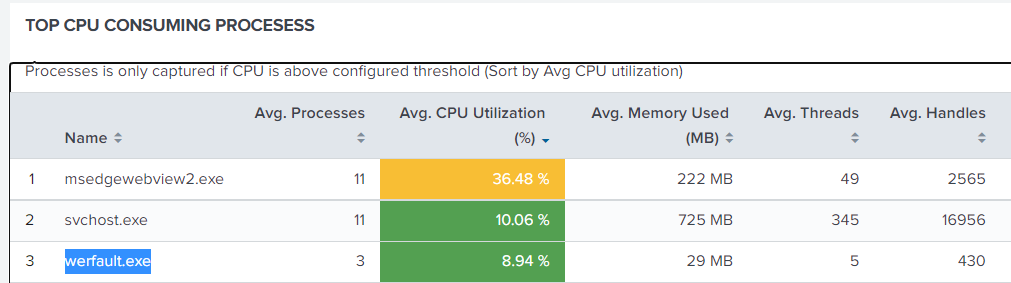

The average CPU usage had increased from 20% to 70% since August 4th due to msedgewebview2.exe crashing continuously.
This caused Windows to launch WerFault.exe to generate process dumps.

Solution​

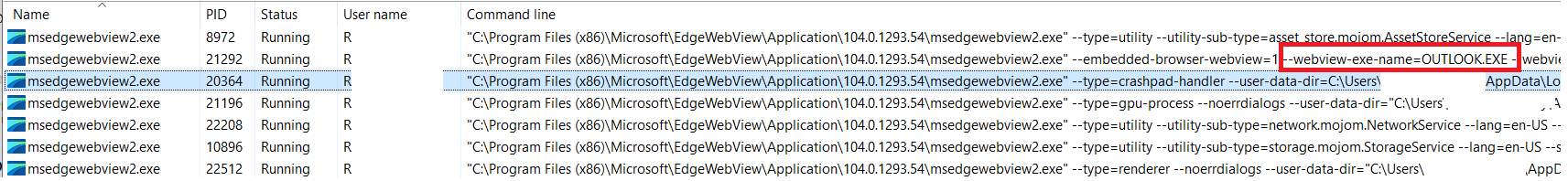

Technicians traced the origin of the msedgewebview2.exe process and discovered that it was being launched by the Outlook Desktop app whenever Citrix users opened Calendar appointments.

Reference Image:

Further investigation revealed that only 6 out of 90 Citrix servers had the Edge WebView2 embedded browser installed.
This occurred because Office 365 was automatically pushing WebView2 via the Office installation package.

Reference: Microsoft WebView2 Installation Guide

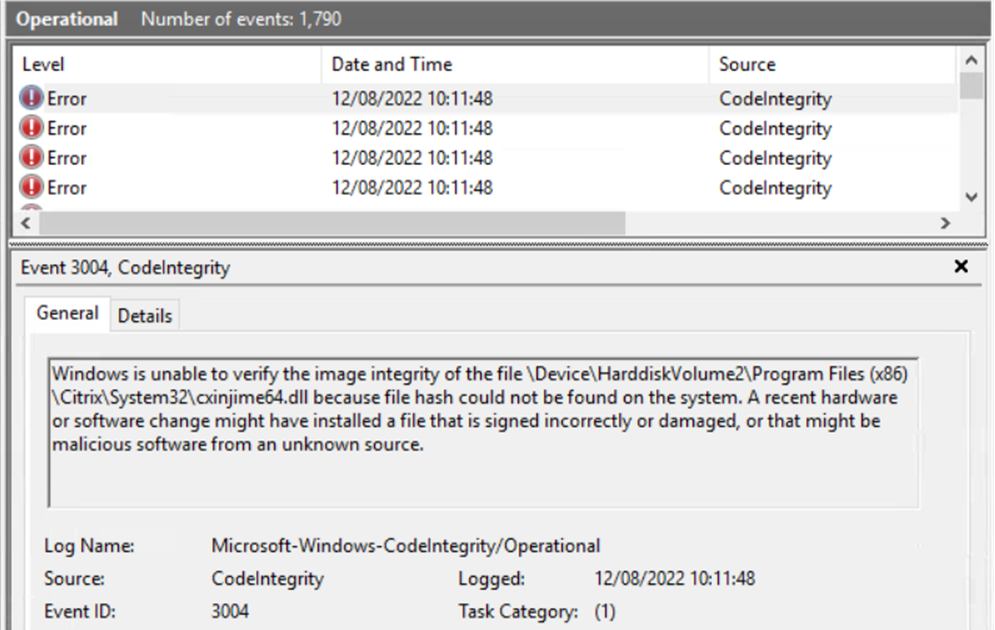

Additionally, CodeIntegrity events were recorded in the Windows Event Log, indicating that Citrix was hooking into the msedgewebview2.exe process.

Reference Image:

Root Cause and Resolution​

Background:
XenDesktop/XenApp version 7.9 and later uses Kernel APC Hooking as a replacement for AppInit_DLLs used in earlier versions.
All Citrix Hooking—including MfApHook.dll and MfApHook64.dll—was disabled to isolate the issue.

Registry Fix:
Create the following registry value to exclude the problematic process:

Key: HKLM\SYSTEM\CurrentControlSet\services\CtxUvi
Value Name: UviProcessExcludes
Type: REG_SZ
Value: msedgewebview2

After applying this change, the issue was resolved.

Reference:
How to Disable Citrix API Hooks on a Per-Application Basis (CTX107825)

Deployment​

After successful internal testing, the fix was rolled out to the remaining Citrix servers in the farm via Group Policy Objects (GPOs).
